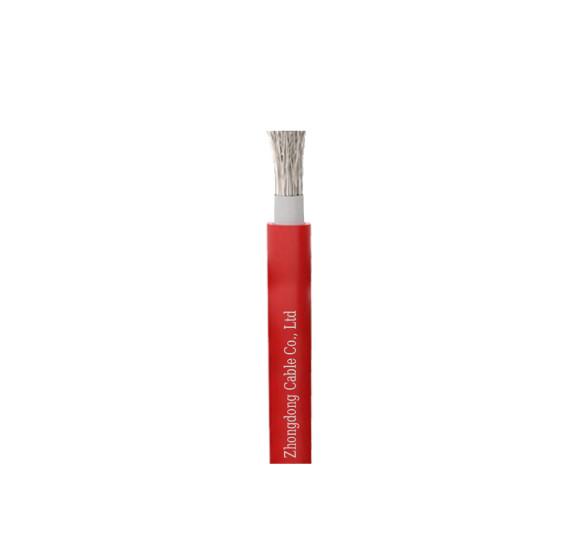

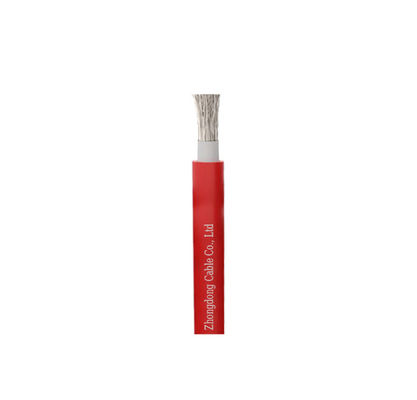

Tinned Copper XLPO Jacket Photovoltaic Solar Cable Flame Retardant PV Cable HIZ2Z2-K
| Conductor: | Tinned Copper | Test Voltage: | 6.5kV AC |
| Temperature Rating: | Fixed: -40°C To +90°C | Core: | 1 Core/2 Core |
| High Light: | XLPO Jacket Photovoltaic Solar Cable,Flame Retardant PV Cable HIZ2Z2-K,Tinned Copper Photovoltaic Solar Cable |
||
HIZ2Z2-K Tinned Copper XLPO Jacket Solar Cable Flame Retardant PV Cable
APPLICATION
Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems. Impact tested - Suitable for direct burial. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. Water resistant to AD8.
CONSTRUCTION
Conductor: Tinned copper, electrical property & Structure in accordance with EN60228 Class 5.
Insulation: LSZH electron-beam cross-linked Polyolefin copolymer ROHS material, prior color black or as per customer’s request.
Outer Sheath: LSZH & UV-resistant electron-beam cross-linked Polyolefin copolymer ROHS material, prior color black or as per customer’s request.
STANDARDS
EN 50618, TÜV 2 PfG 1169/08.2007, EN 50288-3-7, EN 60068-2-78, EN 50395
SPECIFICATION
Nominal Voltage: U0/U 0.6/1 KV (AC) / 1/1.8 KV (DC)
Test Voltage: No breakdown at 6.5 KA(AC) 50HZ 5min & 20±5℃ / 15KA (DC) 5min 20±5℃
Temperature Rating: Working Temperature －40℃～＋90℃, Max conductor Temperature 125℃ (continuously 20h), Allowable short circuit temperature 200°C in 5 second
Service Life: Expected life span≥25 years
Bending Radius: Fixed installation＞4D, Occasionally moved＞5D
-
