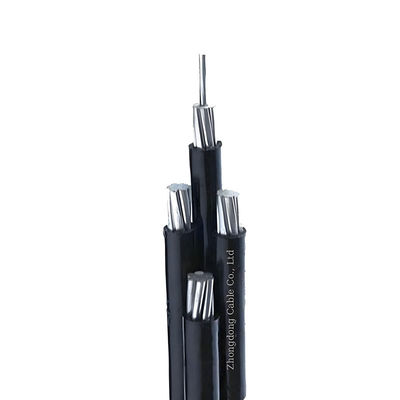

Aluminium Twisted ABC Aerial Bundle Kabel Layanan Drop Wire PVC Terisolasi untuk Overhead
| Nominal Cross Section: | 10-500 mm | Conductor: | Konduktor aluminium |
| Phase Conductor: | Al/Aloy | Size: | 10-150mm2 |
| Oem: | Diterima | Range Of Application: | Atas |
| High Light: | Aluminium Twisted ABC Aerial Bundle Cable,Service Drop Wire PVC Terisolasi |
||
Aluminium Twisted ABC Aerial Bundle Kabel Layanan Drop Wire PVC Terisolasi Overhead Aplikasi Kabel
Permohonan
Terutama digunakan untuk aplikasi layanan overhead seperti pencahayaan jalan,pencahayaan luar,dan layanan sementara untuk konstruksi, To be used at voltage of 600V to 2200V phase-to-phase or less at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross liked polyethylene insulated conductors.
Konstruksi
- Konduktor fase: Kawat aluminium, 1350-H19
- Neutral konduktor : Aluminium kawat 1350-H19, Semua paduan Aluminium konduktor 6201, Aluminium konduktor baja diperkuat
- Isolasi: XLPE,PE,PVC
Spesifikasi
|
Jumlah inti x Bagian lintas nominal |
Diameter keseluruhan |
Berat badan |
Resistensi Konduktor Maksimal |
Beban Pemecahan Minimal |
Peringkat Saat Ini |
|
No.x mm^2 |
mm |
Kg/Km |
Oh/Km |
KN: |
A |
|
2x10 RM |
12.8 |
93 |
3.08 |
1.5 |
38 |
|
4x10 RM |
15.4 |
183 |
3.08 |
1.5 |
38 |
|
2x16 RM |
14.8 |
129 |
1.91 |
2.3 |
72 |
|
2x16 RN + 2x1.5 RE |
14.8 |
176 |
1.910/12.100 |
2.3 |
72 |
|
4x16 RM |
17.8 |
257 |
1.91 |
2.3 |
72 |
|
4x16 RN + 2x1.5 RE |
17.8 |
304 |
1.910/12.100 |
2.3 |
72 |
|
2x25 RM |
18 |
202 |
1.2 |
3.8 |
107 |
|
2x25 RM + 2x1.5 RE |
18 |
249 |
1.200/12.100 |
3.8 |
107 |
|
4x25 RM |
21.7 |
404 |
1.2 |
3.8 |
107 |
|
4x25 RM + 2x1.5 RE |
21.7 |
451 |
1.200/12.100 |
3.8 |
107 |
|
2x35 RM |
20.8 |
269 |
0.868 |
5.2 |
132 |
|
2x35 RM + 2x1.5 RE |
20.8 |
316 |
0.868/12.100 |
5.2 |
132 |
|
4x35 RM |
25.1 |
539 |
0.868 |
5.2 |
132 |
|
4x35 RM + 2x1.5 RE |
25.1 |
586 |
0.868/12.100 |
5.2 |
132 |
|
2x50 RM |
23.4 |
352 |
0.641 |
7.6 |
165 |
|
2x50 RM + 2x1.5 RE |
23.4 |
399 |
0.641/12.100 |
7.6 |
165 |
|
1x54.6 RM + 3x25 RM |
21.7 |
507 |
0.630/1.200 |
3.8 |
107 |
|
1x54.6 RM + 3x25 RM + 1x16 RM |
24.3 |
573 |
0.630/1.200/1.910 |
3.8/2.3 |
107/72 |
|
1x54.6 RM + 3x25 RM + 2x16 RM |
29.7 |
639 |
0.630/1.200/1.910 |
3.8/2.3 |
107/72 |
|
1x54.6 RM + 3x25 RM + 3x16 RM |
31.1 |
705 |
0.630/1.200/1.910 |
3.8/2.3 |
107/72 |
|
1x54.6 RM + 3x35 RM |
25.1 |
615 |
0.630/0.868 |
5.2 |
132 |
|
1x54.6 RM + 3x35 RM + 1x16 RM |
28.1 |
680 |
0.630/0.868/1.910 |
5.2/2.3 |
132/72 |
|
1x54.6 RM + 3x35 RM + 2x16 RM |
34.3 |
748 |
0.630/0.868/1.910 |
5.2/2.3 |
132/72 |
|
1x54.6 RM + 3x35 RM + 3x16 RM |
35.9 |
814 |
0.630/0.868/1.910 |
5.2/2.3 |
132/72 |
|
1x54.6 RM + 3x35 RM + 1x25 RM |
28.1 |
714 |
0.630/0.868/1.200 |
5.2/3.8 |
132/107 |
|
1x54.6 RM + 3x50 RM |
28.2 |
741 |
0.630/0.641 |
7.6 |
165 |
|
1x54.6 RM + 3x50 RM + 1x16 RM |
31.6 |
806 |
0.630/0.641/1.910 |
7.6/2.3 |
165/72 |
|
1x54.6 RM + 3x50 RM + 2x16 RM |
38.6 |
875 |
0.630/0.641/1.910 |
7.6/2.3 |
165/72 |
|
1x54.6 RM + 3x50 RM + 3x16 RM |
40.4 |
940 |
0.630/0.641/1.910 |
7.6/2.3 |
165/72 |
|
1x54.6 RM + 3x50 RM + 1x25 RM |
31.6 |
841 |
0.630/0.641/1.200 |
7.6/3.8 |
165/107 |
|
1x54.6 RM + 3x70 RM |
33 |
950 |
0.630/0.443 |
10.2 |
205 |
|
1x54.6 RM + 3x70 RM + 1x16 RM |
37 |
1014 |
0.630/0.443/1.910 |
10.2/2.3 |
205/72 |
|
1x54.6 RM + 3x70 RM + 2x16 RM |
45.2 |
1083 |
0.630/0.443/1.910 |
10.2/2.3 |
205/72 |
|
1x54.6 RM + 3x70 RM + 3x16 RM |
47.3 |
1148 |
0.630/0.443/1.910 |
10.2/2.3 |
205/72 |
|
1x54.6 RM + 3x70 RM + 1x25 RM |
37 |
1048 |
0.630/0.443/1.200 |
10.2/3.8 |
205/107 |
|
1x54.6 RM + 3x70 RM + 2x25 RM |
45.2 |
1150 |
0.630/0.443/1.200 |
10.2/3.8 |
205/107 |
|
1x54.6 RM + 3x70 RM + 3x25 RM |
47.3 |
1250 |
0.630/0.443/1.200 |
10.2/3.8 |
205/107 |
|
1x54.6 RM + 3x95 RM |
37.4 |
1176 |
0.630/0.320 |
13.5 |
240 |
|
1x54.6 RM + 3x95 RM + 1x16 RM |
41.9 |
1243 |
0.630/0.320/1.910 |
13.5/2.3 |
240/72 |
-
