| Nguồn gốc: | Hà Lan ， Trung Quốc |
|---|---|
| Hàng hiệu: | Armoured Electrical Cable |
| Chứng nhận: | ISO,VDE,ISO,TUV |
| Số mô hình: | KYJV22 N2XBY |
| Số lượng đặt hàng tối thiểu: | Có thể thương lượng |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Trống bằng thép bằng gỗ |
| Thời gian giao hàng: | 10 ngày làm việc |
| Điều khoản thanh toán: | L/C, T/T. |
| Khả năng cung cấp: | 100km/tuần |
| Vật liệu dẫn điện: | đồng | Vật liệu cách nhiệt: | XLPE |
|---|---|---|---|
| Ứng dụng: | Công nghiệp | Áo khoác: | PVC |
| Màu sắc: | Không bắt buộc | lõi: | 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 |
| Làm nổi bật: | steel wire armored electrical cable,PVC insulated copper control cable,multicore 450/750V armoured cable |
||

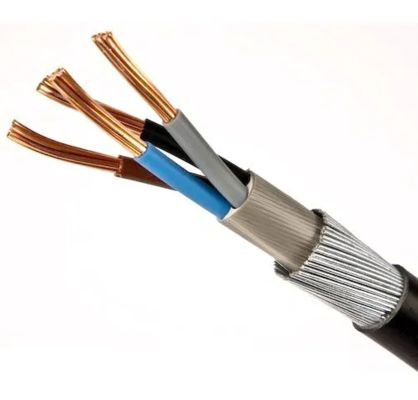

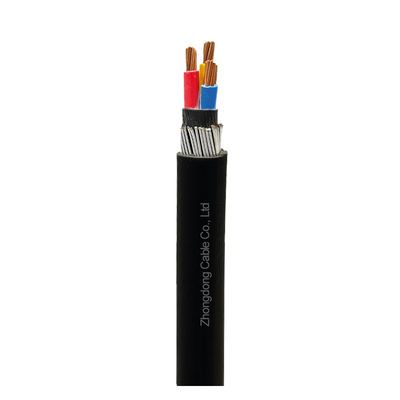

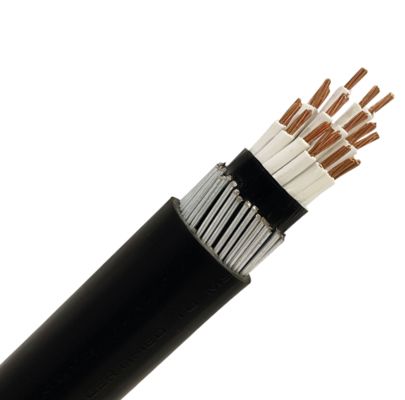

Multicore 450/750V armoured electrical cables with steel wire armor and PVC insulation are widely used in industrial and construction applications requiring robust mechanical protection and reliable electrical performance
Voltage Rating Uo/U: 450/750V
Temperature Rating
Maximum operating temperature of conductor:+70℃
Operating ambient temperature: -15℃~+45℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: 15D (D is the actual outer diameter of the cable)
No of core: 2-61 core
Nominal cross-section of conductor: 0.5-10mm2
|
Specs |
Conductor diameter |
Nominal thickness of insulation |
Nominal thickness of sheath |
Approximate outer diameter of cable |
Approximate cable weight |
|
8×0.5(B) |
0.90 |
0.6 |
1.5 |
13.9 |
274.6 |
|
8×0.75 |
1.02 |
0.6 |
1.5 |
14.3 |
302.5 |
|
8×0.75(B) |
1.10 |
0.6 |
1.5 |
14.5 |
311.4 |
|
8×1 |
1.16 |
0.6 |
1.5 |
14.8 |
333.5 |
|
8×1(B) |
1.29 |
0.6 |
1.5 |
15.2 |
347.3 |
|
8×1.5 |
1.41 |
0.7 |
1.5 |
163 |
418.3 |
|
8×1.5(B) |
1.56 |
0.7 |
1.5 |
16.9 |
435.3 |
|
8×2.5 |
1.76 |
0.8 |
1.5 |
18.4 |
557.6 |
|
8×2.5(B) |
2.04 |
0.8 |
1.5 |
19.2 |
584.7 |
|
8×4 |
2.22 |
0.8 |
1.7 |
20.5 |
733.4 |
|
8×4(B) |
2.55 |
0.8 |
1.7 |
21.4 |
766.4 |
|
8×6 |
2.74 |
0.8 |
1.7 |
22.2 |
931.7 |
|
8×6(B) |
3.10 |
0.8 |
1.7 |
233 |
971.1 |
|
8×10 |
4.00 |
1.0 |
1.7 |
28.3 |
1454.2 |
|
10×0.5 |
0.85 |
0.6 |
1.5 |
14.8 |
310.5 |
|
10×0.5(B) |
0.90 |
0.6 |
1.5 |
15.0 |
317.8 |
|
10×0.75 |
1.02 |
0.6 |
1.5 |
15.5 |
351.9 |
|
10×0.75(B) |
1.10 |
0.6 |
1.5 |
15.8 |
362.8 |
|
10×1 |
1.16 |
0.6 |
1.5 |
16.1 |
390.1 |
|
10×1(B) |
1.29 |
0.6 |
1.5 |
16.6 |
406.8 |
|
10×1.5 |
1.41 |
0.7 |
1.5 |
17.9 |
494.1 |
|
10×1.5(B) |
1.56 |
0.7 |
1.5 |
185 |
514.9 |
|
10×2.5 |
1.76 |
0.8 |
1.7 |
20.8 |
685.3 |
|
10×2.5(B) |
2.04 |
0.8 |
1.7 |
21.7 |
719.4 |
|
10×4 |
2.22 |
0.8 |
1.7 |
22.7 |
881.5 |
|
10×4(B) |
2.55 |
0.8 |
1.7 |
23.7 |
921.9 |
|
10×6 |
2.74 |
0.8 |
1.7 |
24.7 |
1127.4 |
|
10×6(B) |
3.10 |
0.8 |
1.7 |
25.9 |
1175.7 |
|
10×10 |
4.00 |
1.0 |
2.0 |
32.3 |
1816.9 |
|
12×0.5 |
0.85 |
0.6 |
1.5 |
15.2 |
333.5 |
|
12×0.5(B) |
0.90 |
0.6 |
1.5 |
15.4 |
341.6 |
|
2×0.75 |
1.02 |
0.6 |
1.5 |
15.9 |
380.6 |
|
12×0.75(B) |
1.10 |
0.6 |
1.5 |
16.2 |
392.7 |
|
12×1 |
1.16 |
0.6 |
1.5 |
16.5 |
424.5 |
|
12×1(B) |
1.29 |
0.6 |
1.5 |
17.0 |
442.7 |
|
12×1.5 |
1.41 |
0.7 |
1.5 |
18.4 |
542.5 |
|
12×1.5(B) |
1.56 |
0.7 |
1.5 |
19.0 |
565.1 |
Q: What is the primary application of this cable?
A: Designed for industrial control circuits and power distribution in harsh environments, such as mining, construction, and renewable energy projects.Q:
Q: Why is steel wire armor used?
A: Provides mechanical protection against crushing, impact, and rodent damage, making it suitable for direct burial or exposed installations.
Q: What conductor material is used?
A: High-purity copper ensures low resistance and reliable conductivity for stable signal/power transmission.
Q: Is the PVC insulation flame-retardant?
A: Yes, it meets flame retardancy standards (e.g., IEC 60332) and resists chemicals, oils, and moisture.
Q: How many cores are available?
A: Multicore variants (e.g., 4-37 cores) allow complex wiring configurations for automation systems.
Q: Is it suitable for underground installation?
A: Yes, the steel armor and PVC sheath protect against soil corrosion and external mechanical stress.
Q: What distinguishes it from non-armored cables?
A: Enhanced durability and safety in demanding environments, though slightly heavier than unarmored alternatives.
