Thông tin chi tiết sản phẩm:
|
| Ứng dụng: | Đường dây phân phối trên cao | Lõi nos: | 1,2,3,4 nhiều hơn |
|---|---|---|---|
| Điện áp định mức: | 15/35kv | Bằng cấp cài đặt: | -20 ℃ -90 |
| Sứ giả trung lập: | AAC, AAAC hoặc ACSR | Cách nhiệt: | PE/PVC |

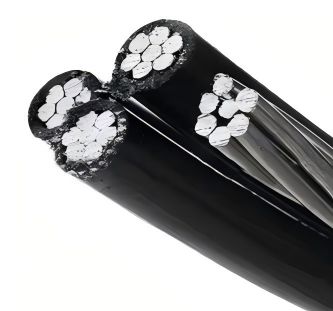

Overhead Insulated ABC Cable NFC 33-209 0.6/1kV for Power Distribution
|
Number of Cores x Nominal Cross Section |
Approx. Overall Diameter |
Approx. Weight |
Max. DC Conductor resistance at 20℃ |
Minimum Breaking Load |
Current Rating |
|
No.×mm² |
mm |
Kg/Km |
Ω/Km |
kN |
A |
|
2×10 RM |
12.8 |
93 |
3.08 |
1.5 |
38 |
|
4×10 RM |
15.4 |
183 |
3.08 |
1.5 |
38 |
|
2×16 RM |
14.8 |
129 |
1.91 |
2.3 |
72 |
|
2×16 RN + 2×1.5 RE |
14.8 |
176 |
1.91/12.1 |
2.3 |
72 |
|
4×16 RM |
17.8 |
257 |
1.91 |
2.3 |
72 |
|
4×16 RN + 2×1.5 RE |
17.8 |
304 |
1.91/12.1 |
2.3 |
72 |
|
2×25 RM |
18 |
202 |
1.2 |
3.8 |
107 |
|
2×25 RM + 2×1.5 RE |
18 |
249 |
1.20/12.1 |
3.8 |
107 |
|
4×25 RM |
21.7 |
404 |
1.2 |
3.8 |
107 |
|
4×25 RM + 2×1.5 RE |
21.7 |
451 |
1.20/12.1 |
3.8 |
107 |
|
2×35 RM |
20.8 |
269 |
0.868 |
5.2 |
132 |
|
2×35 RM + 2×1.5 RE |
20.8 |
316 |
0.868/12.1 |
5.2 |
132 |
|
4×35 RM |
25.1 |
539 |
0.868 |
5.2 |
132 |
|
4×35 RM + 2×1.5 RE |
25.1 |
586 |
0.868/12.1 |
5.2 |
132 |
|
2×50 RM |
23.4 |
352 |
0.641 |
7.6 |
165 |
|
2×50 RM + 2×1.5 RE |
23.4 |
399 |
0.641/12.1 |
7.6 |
165 |
|
1×54.6 RM + 3×25 RM |
21.7 |
507 |
0.630/1.20 |
3.8 |
107 |
|
1×54.6 RM + 3×25 RM + 1×16 RM |
24.3 |
573 |
0.630/1.20/1.91 |
3.8/2.3 |
107/72 |
|
1×54.6 RM + 3×25 RM + 2×16 RM |
29.7 |
639 |
0.630/1.20/1.91 |
3.8/2.3 |
107/72 |
|
1×54.6 RM + 3×25 RM + 3×16 RM |
31.1 |
705 |
0.630/1.20/1.91 |
3.8/2.3 |
107/72 |
|
1×54.6 RM + 3×35 RM |
25.1 |
615 |
0.630/0.868 |
5.2 |
132 |
|
1×54.6 RM + 3×35 RM + 1×16 RM |
28.1 |
680 |
0.630/0.868/1.91 |
5.2/2.3 |
132/72 |
|
1×54.6 RM + 3×35 RM + 2×16 RM |
34.3 |
748 |
0.630/0.868/1.91 |
5.2/2.3 |
132/72 |
|
1×54.6 RM + 3×35 RM + 3×16 RM |
35.9 |
814 |
0.630/0.868/1.91 |
5.2/2.3 |
132/72 |
|
1×54.6 RM + 3×35 RM + 1×25 RM |
28.1 |
714 |
0.630/0.868/1.20 |
5.2/3.8 |
132/107 |
|
1×54.6 RM + 3×50 RM |
28.2 |
741 |
0.630/0.641 |
7.6 |
165 |
|
1×54.6 RM + 3×50 RM + 1×16 RM |
31.6 |
806 |
0.630/0.641/1.91 |
7.6/2.3 |
165/72 |
|
1×54.6 RM + 3×50 RM + 2×16 RM |
38.6 |
875 |
0.630/0.641/1.91 |
7.6/2.3 |
165/72 |
|
1×54.6 RM + 3×50 RM + 3×16 RM |
40.4 |
940 |
0.630/0.641/1.91 |
7.6/2.3 |
165/72 |
|
1×54.6 RM + 3×50 RM + 1×25 RM |
31.6 |
841 |
0.630/0.641/1.20 |
7.6/3.8 |
165/107 |
|
1×54.6 RM + 3×70 RM |
33 |
950 |
0.630/0.443 |
10.2 |
205 |
|
1×54.6 RM + 3×70 RM + 1×16 RM |
37 |
1014 |
0.630/0.443/1.91 |
10.2/2.3 |
205/72 |
|
1×54.6 RM + 3×70 RM + 2×16 RM |
45.2 |
1083 |
0.630/0.443/1.91 |
10.2/2.3 |
205/72 |
|
1×54.6 RM + 3×70 RM + 3×16 RM |
47.3 |
1148 |
0.630/0.443/1.91 |
10.2/2.3 |
205/72 |
|
1×54.6 RM + 3×70 RM + 1×25 RM |
37 |
1048 |
0.630/0.443/1.20 |
10.2/3.8 |
205/107 |
|
1×54.6 RM + 3×70 RM + 2×25 RM |
45.2 |
1150 |
0.630/0.443/1.20 |
10.2/3.8 |
205/107 |
|
1×54.6 RM + 3×70 RM + 3×25 RM |
47.3 |
1250 |
0.630/0.443/1.20 |
10.2/3.8 |
205/107 |
|
1×54.6 RM + 3×95 RM |
37.4 |
1176 |
0.630/0.320 |
13.5 |
240 |
|
1×54.6 RM + 3×95 RM + 1×16 RM |
41.9 |
1243 |
0.630/0.320/1.91 |
13.5/2.3 |
240/72 |
Q:What is Overhead Insulated ABC Cable (NFC 33-209)?
A bundled conductor system with XLPE insulation, designed for low-voltage (0.6/1kV) overhead power distribution, compliant with French standard NFC 33-209.
Q:What are the key components of this cable?
A: Typically includes aluminum conductors (AL), XLPE insulation, and optional neutral/earth conductors (e.g., 3×50mm² + 1×54.6mm²).
Q: Where is it commonly used?
A: Urban/rural power grids, industrial sites, and renewable energy projects (e.g., solar/wind farm interconnections).
Q: What are the advantages over bare conductors?
A: Safer (reduced short-circuit risks), lower maintenance (weather-resistant), and easier installation (pre-fabricated bundles).
Q: Is it suitable for harsh climates?
A:Yes, with UV-resistant XLPE and optional galvanized steel wires for mechanical strength.
Q: What installation methods are recommended?
A: Use self-supporting or tensioning hardware; avoid sharp bends (minimum bending radius: 12× cable diameter).
Q: How to select the right configuration?
A:Consider load capacity (e.g., 3×50mm² for 150A circuits) and local grid codes (neutral conductor sizing).
