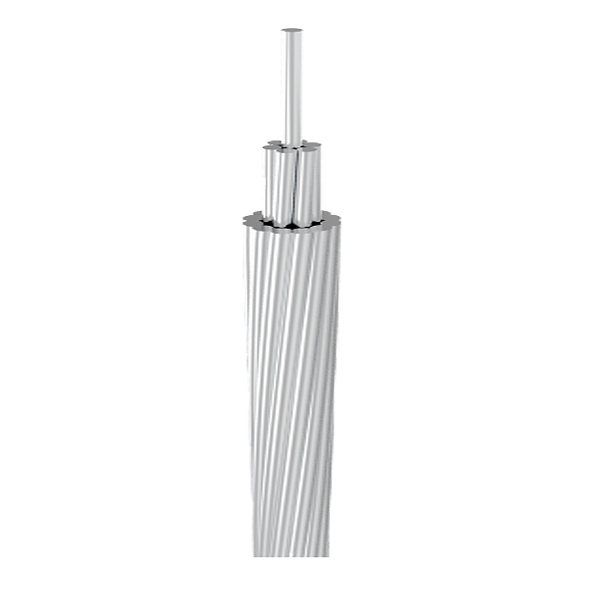

BS EN 50182 Certified ACSR LYNX & PANTHER Conductor up to 400kV for Overhead Transmission

Key Features

• High Strength-to-Weight Ratio – Galvanized steel core provides excellent mechanical performance for long-span installations

• Excellent Electrical Conductivity – Hard-drawn aluminum strands (1350-H19) ensure efficient power transmission with minimal losses

• Corrosion Resistance – Galvanized steel core (Class A or Class B) protects against environmental degradation

• Sag Performance – Optimized design reduces sag at high operating temperatures, suitable for long-span river crossings and mountainous terrain

• Standard Compliance – Manufactured in strict accordance with BS EN 50182 and BS 215 Part 2

Selection Guideline:

• Choose LYNX for medium-load lines, shorter spans, or projects with weight constraints

• Choose PANTHER for higher current demand, longer spans, or higher voltage applications

Quality Assurance

Zhongdong Cable Co., Ltd. ensures every meter of ACSR conductor meets or exceeds BS EN 50182 requirements through:

• Raw Material Traceability – Full documentation of aluminum and steel wire sources

• In-Process Inspection – Continuous monitoring of stranding pitch, lay length, and compaction

• Mechanical Testing – Breaking load verification on every production batch

• Electrical Testing – DC resistance measurement at 20°C

• Galvanizing Verification – Zinc coating weight and uniformity per BS EN 50182

FAQ

1. What is the difference between LYNX and PANTHER?

LYNX (175mm²) is lighter and suited for medium-load lines (66–132kV). PANTHER (200mm²) is larger, stronger, and handles higher current (132–220kV) and longer spans.

2. What standards do these conductors meet?

BS EN 50182 and BS 215 Part 2. Also available to IEC, ASTM, or DIN standards upon request.

3. What steel core galvanizing options are available?

Class A (standard) and Class B (heavier coating for coastal/corrosive environments).

4. What is the maximum operating temperature?

85°C continuous, 125°C emergency, 180°C short-circuit.

5. Which conductor should I choose for my project?

Choose LYNX for lower current, shorter spans, and cost efficiency. Choose PANTHER for higher current, longer spans, and higher voltage (up to 220kV).

6. Can you provide sag-tension data?

Yes. Contact our technical team with your span and loading conditions for custom sag-tension calculations.

7. What is the lead time?

Typically 7–30 days for standard quantities.

8. Do you offer free samples?

Sample lengths (up to 500 meters) are available upon request. Shipping charges apply.
