Three Core 0.6/1kV Low voltage Power Cable 1.5mm2 to 400mm2 EAC Certified Cable
APPLICATION
Three Core 0.6/1kV Low Voltage Power Cable with EAC certification is designed for:
- Underground installations in commercial/residential power distribution systems, utilizing durable PVC/XLPE insulation for environmental protection
- Industrial applications such as construction sites and power stations, where armored variants (e.g., SWA) provide mechanical strength
- Low-voltage networks (0.6/1kV) requiring efficient current transmission, with color-coded sheaths for system identification
- EAC-compliant markets (Eurasian Customs Union), ensuring compliance with regional safety standards

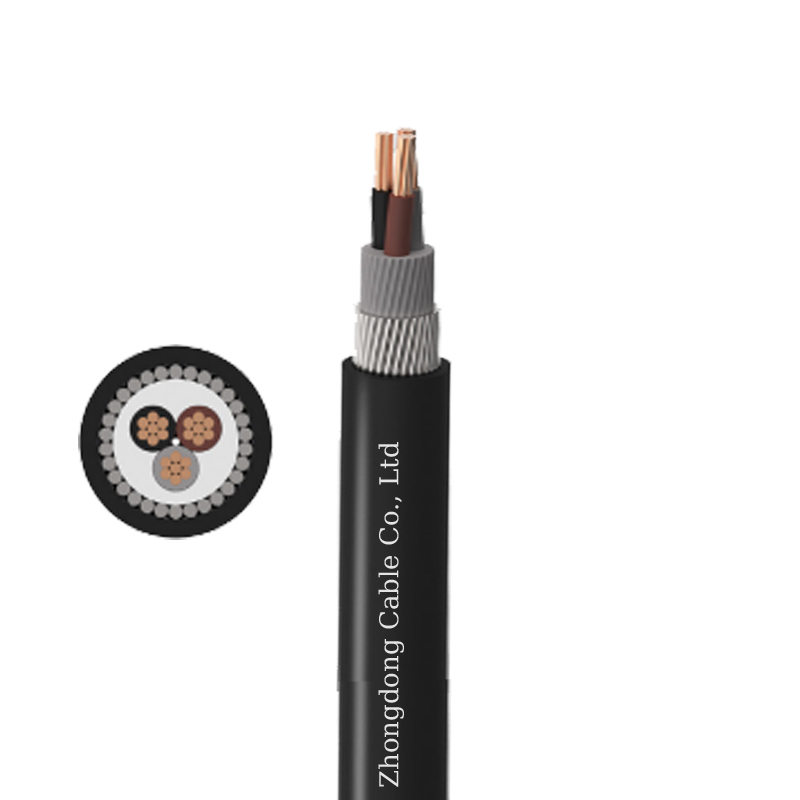

CONSTRUCTION
- Conductor: Class 1/Class 2 stranded Copper conductor
- Insulation:Polyvinyl chloride (PVC)
- Filler(options):Polypropylene mesh tearing rope
- Inner sheath:Polyvinyl chloride (PVC)
- Armour:Aluminum wire or stainless steel wire(single core)galvanized steel wire(multi core)
- Outer sheath:Polyvinyl chloride (PVC)
CHARACTERICSTIC
- Voltage Rating Uo/U: 0.6/1kV
- Maximum system voltage: 1.2kV
- Maximum operating temperature of conductor:+70℃
- Operating ambient temperature: -20℃~+45℃
- Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
- Minimum Bending Radius: Single core: 15D Multicire: 12D (D is the actual outer diameter of the cable)
SPECIFICATION
|
Specs
mm²
|
Conductor diameter
mm
|
Nominal thickness of insulation
mm
|
Lining thickness
mm
|
Nominal thickness of steel wire
mm
|
Nominal thickness of sheath
mm
|
Approximate outer diameter of cable
mm
|
Approximate cable weight
kg/km
|
|
|
|
|
3×1.5
|
1.38
|
0.8
|
1
|
0.8
|
1.8
|
15.1
|
376
|
|
3×2.5
|
1.78
|
0.8
|
1
|
0.8
|
1.8
|
15.9
|
432
|
|
3×4
|
2.25
|
1
|
1
|
1.25
|
1.8
|
18.8
|
680
|
|
3×6
|
2.76
|
1
|
1
|
1.25
|
1.8
|
19.8
|
776
|
|
3×10
|
4
|
1
|
1
|
1.25
|
1.8
|
22.5
|
1009
|
|
3×16
|
5
|
1
|
1
|
1.25
|
1.8
|
24.6
|
1265
|
|
3×25
|
6.1
|
1.2
|
1
|
1.6
|
1.8
|
28.6
|
1855
|
|
3×35
|
7.2
|
1.2
|
1
|
1.6
|
1.8
|
31.2
|
2248
|
|
3×50
|
8.4
|
1.4
|
1
|
1.6
|
2
|
35.1
|
2835
|
|
3×70
|
10
|
1.4
|
1.2
|
2
|
2.1
|
40.2
|
3962
|
|
3×95
|
12
|
1.6
|
1.2
|
2
|
2.2
|
45.6
|
5070
|
|
3×120
|
13
|
1.6
|
1.2
|
2
|
2.3
|
47.9
|
5923
|
|
3×150
|
14.9
|
1.8
|
1.4
|
2.5
|
2.5
|
54.7
|
7676
|
|
3×185
|
16.5
|
2
|
1.4
|
2.5
|
2.7
|
59.5
|
9116
|
|
3×240
|
18.4
|
2.2
|
1.6
|
2.5
|
2.9
|
65.3
|
11289
|
|
3×300
|
21
|
2.4
|
1.6
|
2.5
|
3.1
|
72.2
|
13681
|
|
3×400
|
23.4
|
2.6
|
1.8
|
3.15
|
3.4
|
80.6
|
17764
|
For more specification, please contact us.
APPLICATION
ABOUT US
PROJRCTS
PARTNER
FAQ
What is the EAC certification for this cable, and why is it important?
EAC certification ensures compliance with safety and technical standards in the Eurasian Economic Union (EAEU), including Russia, Belarus, and Kazakhstan. It is mandatory for market entry and guarantees product reliability.
What are the core sizes available, and how are they selected?
Core sizes range from 1.5mm² to 400mm². Smaller sizes (e.g., 1.5mm²–10mm²) suit residential wiring, while larger sizes (e.g., 35mm²–400mm²) are used for industrial power distribution.
Where can this cable be installed?
It is suitable for underground systems, industrial plants, and low-voltage networks (0.6/1kV). Armored variants are recommended for exposed or mechanically stressed environments.
What insulation materials are used, and what are their benefits?
Common materials include PVC (durable and cost-effective) and XLPE (high-temperature resistant). XLPE is preferred for harsh conditions due to its superior insulation properties.
How does the cable handle current transmission?
The three-core design ensures balanced current distribution, with larger cores (e.g., 400mm²) supporting high-power loads in industrial applications.
What safety features does the EAC certification require?
Compliance includes fire resistance, low smoke emission, and mechanical durability tests, ensuring safe operation in critical environments.
Can this cable be used in outdoor or wet conditions?
Yes, outdoor-rated variants with moisture-resistant insulation are available. For extreme conditions, armored cables with protective jackets are recommended.
What are the color-coding standards for phase identification?
Phase cores are typically color-coded (e.g., brown, black, gray for live conductors; blue for neutral; green/yellow for earth) per regional wiring regulations.
How is the cable terminated, and what connectors are compatible?
Termination requires appropriate lugs or connectors rated for 0.6/1kV. Always use EAC-certified accessories to maintain compliance.
What maintenance practices extend the cable’s lifespan?
Regular inspections for insulation integrity, avoiding overloading, and protecting against physical damage ensure long-term performance.
