Détail Infomation

Type de conducteur:	Échoué	Tension nominale:	300/500v
Application:	Résidentiel/Commercial	Mots-clés:	câble de terre, fil de terre
Matériel:	100%Cuivre	Couleur:	Personnalisable
Isolation:	Isolation PVC	Échantillon:	Gratuit
Mettre en évidence:	300/500V Rated Voltage Twin Earth Wire Cable , 1.5MM 6242y Grey PVC Insulated Cable , 2.5MM Electrical Wire for Residential and Commercial Use

Description de produit

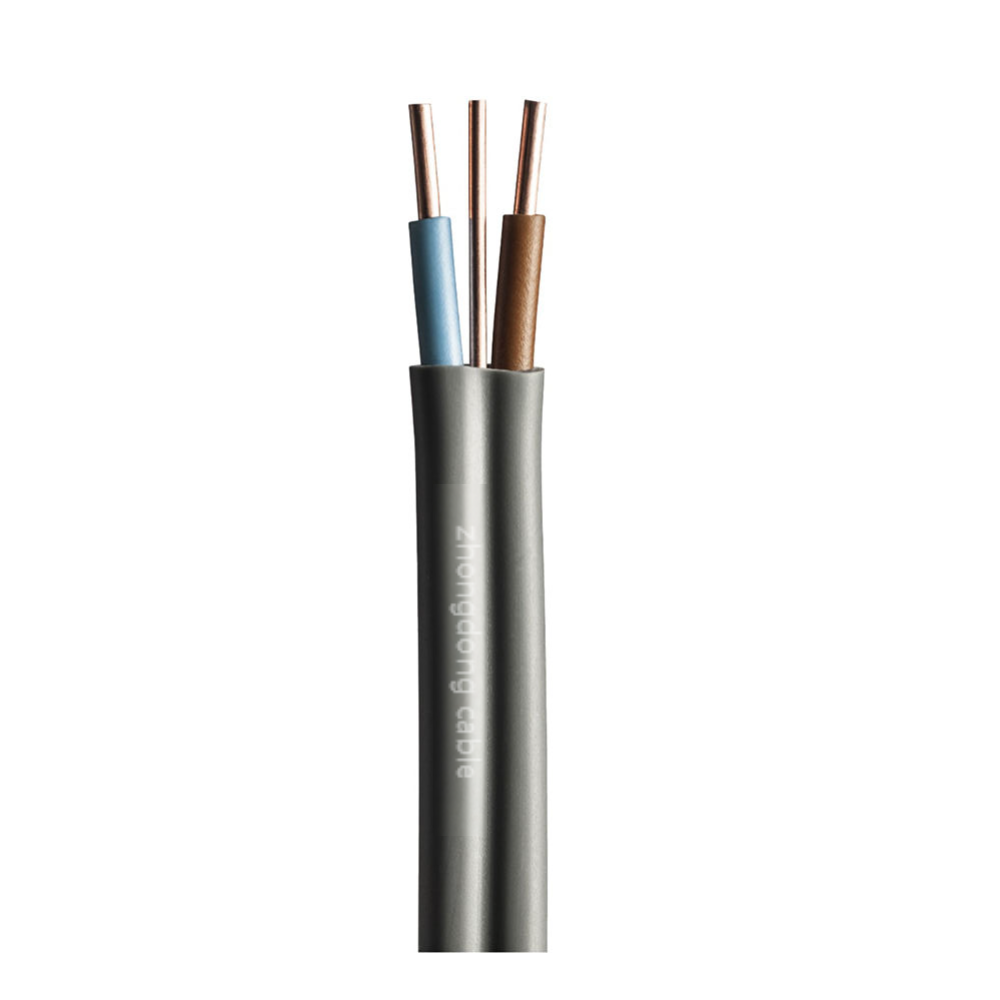

Twin Earth Wire Cable Electrical Wire 6242y Grey PVC Insulated 1.5MM 2.5MM

APPLICATION

Fixed Wiring in Buildings

Lighting Circuits: Primarily used for wiring lighting points in domestic, commercial, and industrial buildings. The 1.5mm² size is standard for this purpose.

Power Socket Circuits (Ring & Radial): The 2.5mm² size is commonly used for wiring 13A power socket outlets in both ring final circuits and radial circuits.

Fixed Appliance Connections: Used to supply power to various fixed appliances such as immersion heaters, boilers, and cookers (depending on current requirements).

FEATURES

Rated voltage: 300/500V, fully applicable to low-voltage power distribution systems in both household and commercial environments.

Long-term working temperature: Maximum +70°C

Flame retardancy: Standard PVC has self-extinguishing properties, meaning it will not continue to burn after being removed from a flame, which helps prevent the fire from spreading through the cable.

PARAMETERS

Nominal section(mm²)	Number of conductors	Toplimit of overall diameter(mm)	Maximum DC resistance(20℃)(Ω/km)	Minimum insulation resistance(70℃)(MΩ.km)	Recommended value of carrying capacity(A)	Reference weight(kg/kmm)
2x0.75	1	4.6x7.1	24.5	0.012	13	42
2x1.0	1	4.8x7.4	18.1	0.011	16	49
2x1.5	1	5.3x8.5	12.1	0.011	20	65
2x2.5	1	6.2x10.1	7.41	0.010	27	97
2x4	1	6.7x11.1	4.61	0.0085	38	140
2x6	1	7.5x12.5	3.08	0.0070	50	192
2x10	2	9.5x16.2	1.83	0.0065	69	306
3x0.75	1	4.6x9.6	24.5	0.012	9.5	60
3x1.0	1	4.8x10.1	18.1	0.011	11	70
3x1.5	1	5.3x11.7	12.1	0.011	13	95
3x2.5	1	6.2x14.0	7.41	0.010	21	142
3x4	1	7.0x15.8	4.61	0.0085	27	213
3x6	1	7.5x17.5	3.08	0.0070	34	284
3x10	2	9.5x23.0	1.83	0.0065	55	457

FACTORY

PROJECT

PACKAGE

FAQ

Q: What is the primary use of Twin & Earth cable?

A: Its primary use is for fixed wiring in domestic and commercial buildings. It is not suitable for portable appliances, extensions, or outdoor use without additional protection.

Q: Can I use 1.5mm² and 2.5mm² cable for the same applications?

A: No. They are designed for different circuits:

• 1.5mm²: Typically used for lighting circuits.

• 2.5mm²: Standard for socket outlets (ring/radial circuits) and fixed appliances like immersion heaters.

Q: What is the maximum temperature this cable can withstand?

A: It has two key temperature ratings:

• Continuous Operating Temp: Up to +70°C.

• Short-Circuit Temp (max. 5s): Up to +160°C.

Q: Is Twin & Earth cable suitable for outdoor installation?

A: No. The standard grey PVC sheath is not UV resistant and can degrade outdoors. It is designed for dry internal locations. For outdoors, it must be protected within a suitable conduit or a special exterior-grade cable should be used.

Q: Why is there a bare copper wire inside the cable?

A: The bare wire is the Circuit Protective Conductor (Earth wire). It provides a vital safety path for fault current to flow, causing the circuit breaker to trip and preventing electric shock. It must always be connected to the earth terminal in accessories and consumer units.

Produit Tag:

Lieu d'origine:	Hebei, Chine
Nom de marque:	Zhongdong
Certification:	CCC,IEC,VDE,TUV,ISO
Numéro de modèle:	BV BVR

Quantité de commande min:	Négociable
Prix:	Négociable
Détails d'emballage:	Tambour en bois/personnalisation client
Délai de livraison:	7-30 jours basés sur différentes quantités
Conditions de paiement:	LC, T/T
Capacité d'approvisionnement:	1000KM/Semaine
